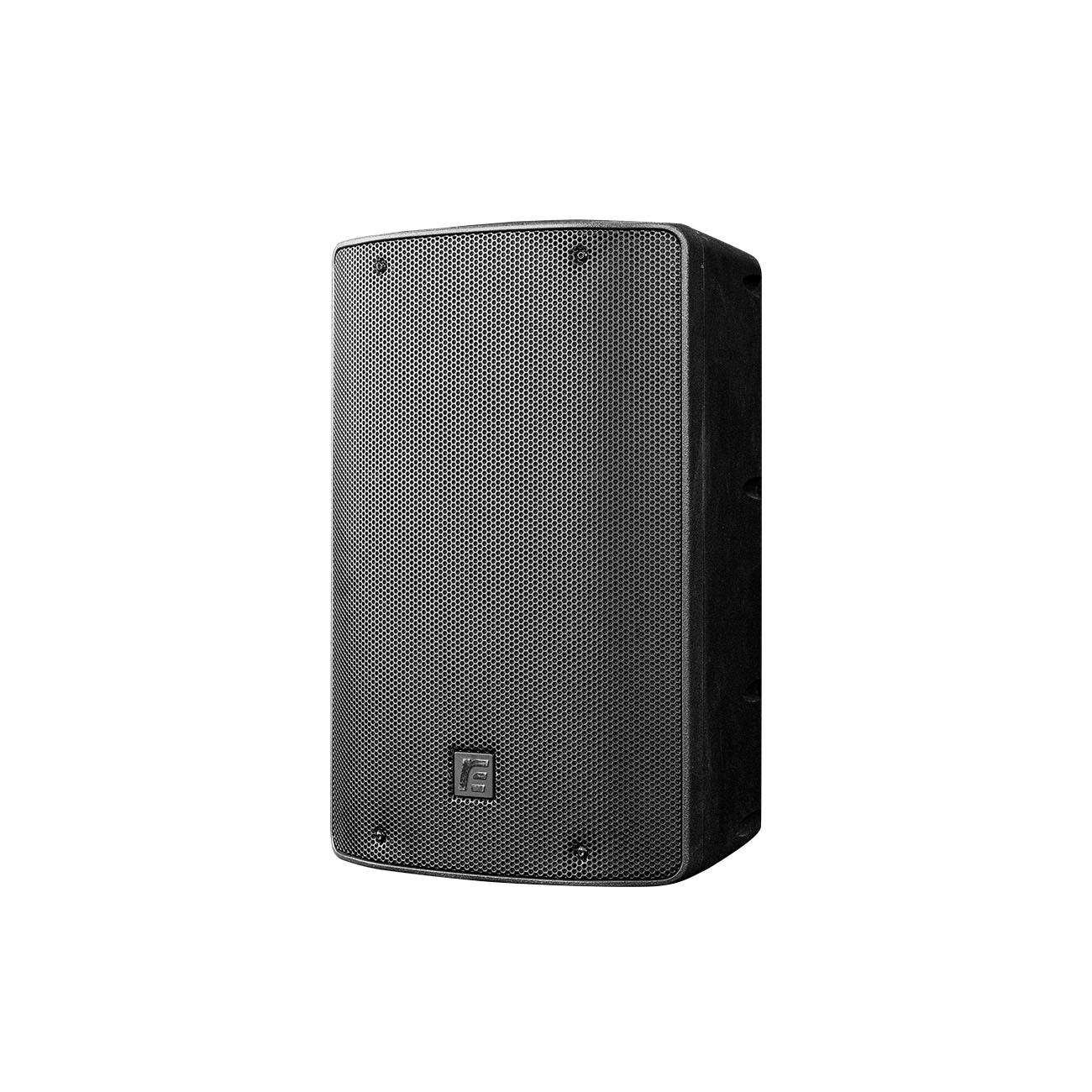

DF10A

System Type：Plastic 2-way Single 10"active loudspeaker

Power：150W rated power, 600W peak

LF unit：10"

HF unit：1”compression driver unit

Crossover Frequency ：2.5 kHz

Maximum SPL ：117dB(peak)

Frequency Range  ：65 Hz – 20 kHz (-10 dB)

Horn Coverage ：90° horizontal x 60° vertical (nominal)

Connector：XLR input+ XLR output

Control：Volume Control knob, Power switch, Contour switch, Line/Mic  toggle switch

Stereo switch：Stereo L/R-VOL-Pair-Link

Indicators ：Power ON with Green LED, Clip Limiter with Red LED,Pair/Link Led

Protection ：Thermal, Overload Analog limiter, Compressor

Power ：220-240 V~, 50/60 Hz

Enclosure ：injection-molded polypropylene, multi-angle for main or monitor applications,metal grille, rubber feet, 1 handle on top

Mounting/Installation ：Standard 36 mm pole socket, wedge monitor

Dimensions  (height x width x depth)：462*287*277mm

Weight ：7.08kg
