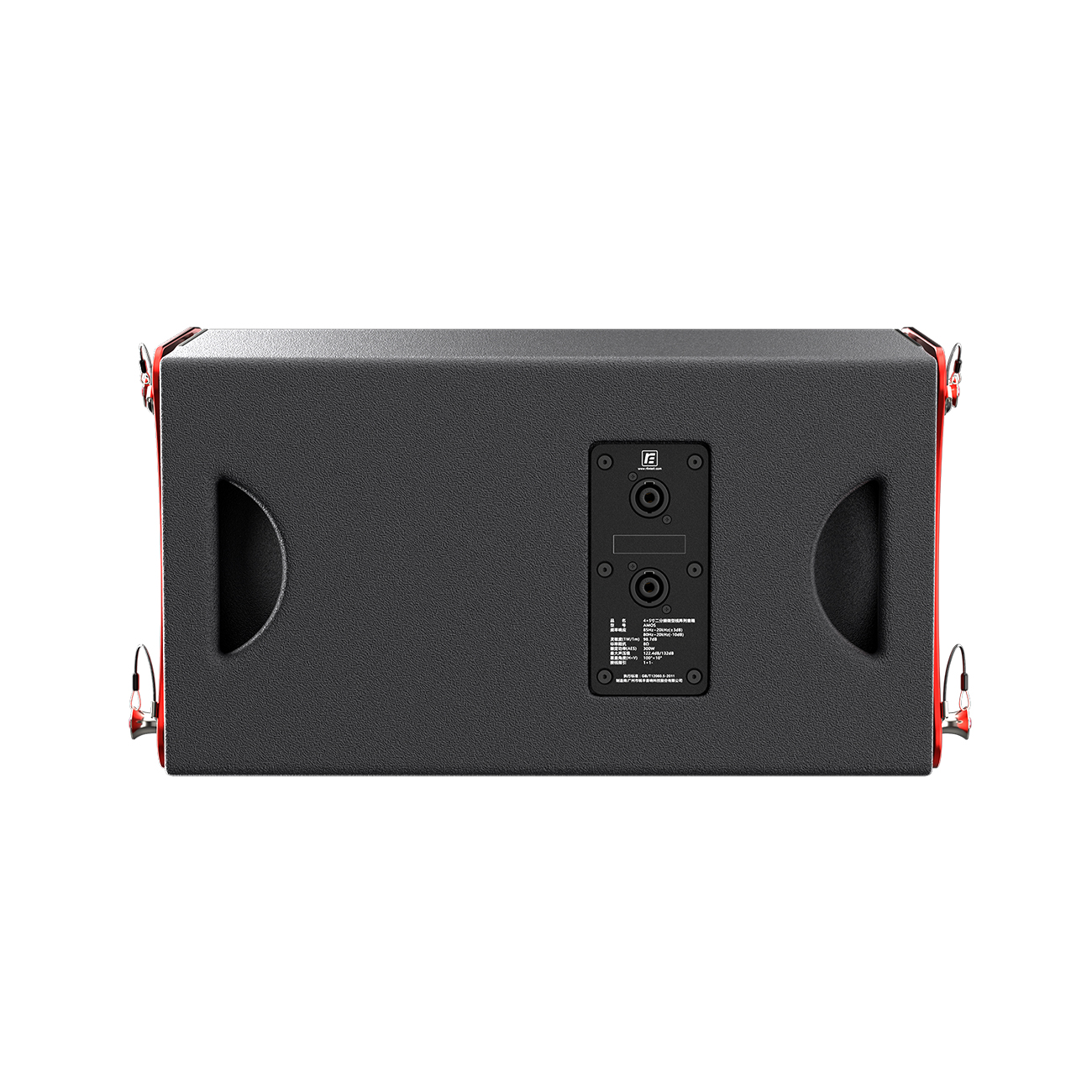

AMOS

Two-way Micro Line Array Speaker

Conference Hall, Banquet Hall, Church, Music club, Pub, Square, Portable Application

Specifications
  • System:4×5“ Two-way Micro Line Array Speaker
  • Frequency response:90Hz~18KHz(±3dB)/85Hz~20KHz (-10dB )
  • Sensitivity(1W/1m):HF:106dB、LF:97dB
  • Nominal impedance:HF:16Ω、LF:8Ω
  • Power rating(AES):HF:50W、LF:250W
  • LF:4×5”Ferromagnetic unit(32mm)
  • HF: 2×1.4”Neodymium magnetic unit(36mm)
  • Dispersion(H×V): 100゜×10゜
  • SPL(Continuous/Peak): HF:122dB/128dB、LF:120dB/126dB
  • Connectors: 2×NEUTRIK NL4MP, HF:2+2-、LF:1+1-
  • Dimension(H×W×D): 270×455×235mm
  • Weight: 15.3kg
Features

“AMOS” is another innovation design of our RF’s family. With the exquisite lines to develop a slim miniature line array speaker. “Pure, Natural as well as the
sense of technology” is the characteristics of whole design.
Adopted two 1.4-inch imported neodymium magnetic high frequency driver units and symmetrical linear waveguide horn are deployed to achieve controllable
and accurate acoustic wave array coverage. And it has the characteristics of high-efficiency conversion to ensure that the distortion of small unit is lower under the
circumstance of loud pressure.
 And more importantly, Four 5-inch imported middle/low frequency units are employed. With the high pitch as the central axis of the horizontal symmetry design,

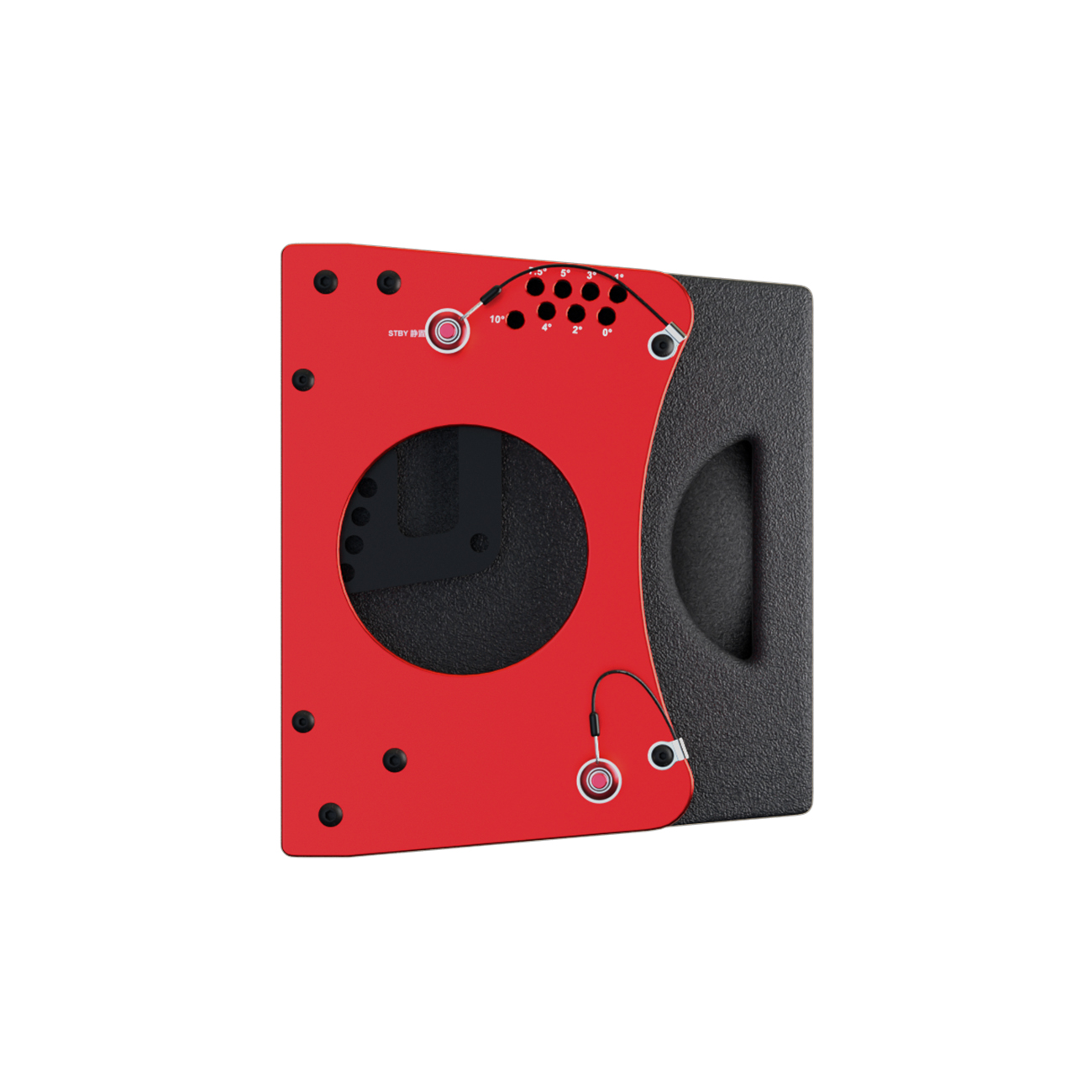

and middle frequency coverage is more natural and even. Both side of the box are equipped with simple installation hanging connectors and two draw hands, which
can meet the requirements of hanging, stacking as well as supporting at the same time.
